Impedance Software Simulator for series parallel ac circuit practical exercises
Specifications
| Returns Accepted | ReturnsNotAccepted |
| Manufacturer Warranty | 3 months |
| MPN | YTIMPSIM |
| Format | Software Download |
| Platform | Windows |
| For Operating Systems | Microsoft Windows 10 |
| Minimum Hard Drive Space | 200 MB |
| Country/Region Of Manufacture | Australia |
| Minimum RAM | 64 MB |
| Minimum Processor Speed | 66 MHz |
| Model | YARL-SIM |
| Licence Category | Lifetime |
| Language | English |
| Brand | Yarl |

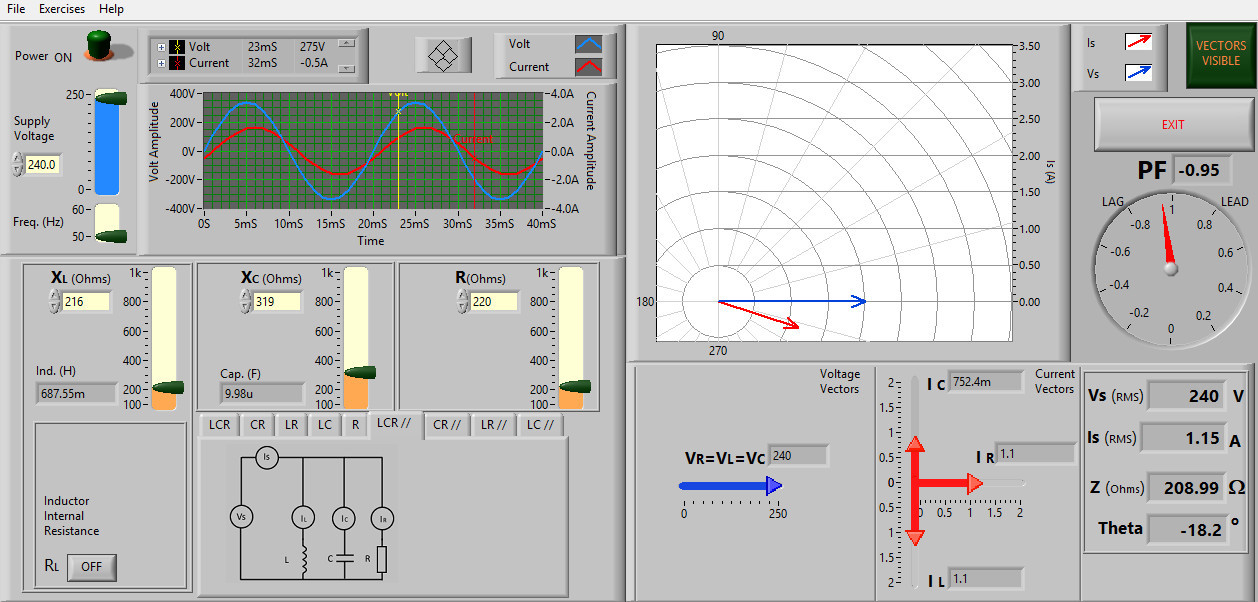

IMPEDANCE Impedance simulator software is designed to help students to do practical exercises using LabVIEW simulation software and hence improve their troubleshooting skills.Impedance Simulator Phasor diagram voltage and current This simulator allows the student to setup a single phase LCR (Inductor, Capacitor, Resistor) a.c. circuit. Students can verify their theoretical knowledge and skills by carrying out the accompanying practical exercises.Features The single phase supply voltage and frequency can be specified. Supply display will show the waveform of both voltage and current drawn from the power supply. Circuit type can be specified by selecting the tab keys which include various combinations of series and parallel circuits of LCR components. Furthermore, the LCR controls will then allow the user to adjust the values (resistor or reactance) of each component. Also, you can view the relationship between voltage and current phasors on vector diagram. Once you have mastered the concepts of single phase series and parallel circuits, you can view the vectors on a phasor chart.Once you purchase this software, please contact me with your details of your purchase.
